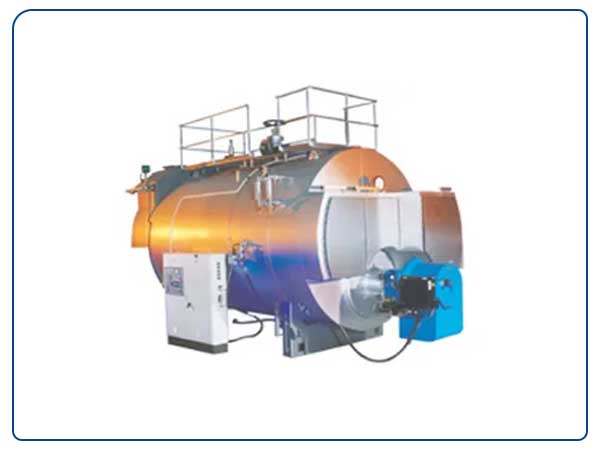

VOLFRAM offers 3 pass wet back truly packaged high efficient Furnace oil or Gas fired steam boilers.
The 3 pass wet back design with mono block burner assembly ensures complete combustion & maximum thermal efficiency resulting into high Steam to Fuel ratio. Each boiler is designed to ensure ease of operation & maintenance.
VOLFRAM boilers are truly packaged which reduces the site work & project completion time, saves money & ensures highest quality of each component of the boiler.
Enquiry Now
Benefits
- Truly packaged type: he Boiler Comes Pre-wired & pre-insulated from the factory itself reducing the site work & cost of site activities.
- Saddle Mounted Boiler: The entire unit is saddle mounted, including all accessories - only connections for water, I D fan, chimney, electricity and steam outlet are required to commission the boiler.
- Compact: The boiler needs less floor space because of the compact design.
- Boiler Burner: The mono block burner provided on the boiler has higher turn down ratio ensuring higher efficiency at lower running loads on the boiler.
- Mountings & Accessories: VOLFRAM Boilers are fitted with mounting and accessories of international repute and standards, the feed water pumps are the vertical multistage SS pumps.
- Centrally Located Furnace: This ensures no tubes in cold zone & enhances effective heat transfer resulting into lower start up time.
Details
- High Steam Space: The higher steam space inside the boiler results in better response to fluctuating steam loads.
- TDS based Automatic Boiler Blow down: The boiler is optionally provided with TDS based automatic boiler blow down system which ensures optimum blow down from the boiler & saves fuel.
- Capacity Range: From 500 kg/hr to 10000 kg/hr.
- Standard Design Pressure: 10.54 kg/cm2 (g), 17.5 kg/cm2 (g) & 21 kg/cm2 (g)
- VOLFRAM offers complete package for the Boiler House consisting of:
- Chimney
- Pollution control equipments
- Piping (IBR/NIBR)
- Feed water tank with accessories
- On site IBR formalities
